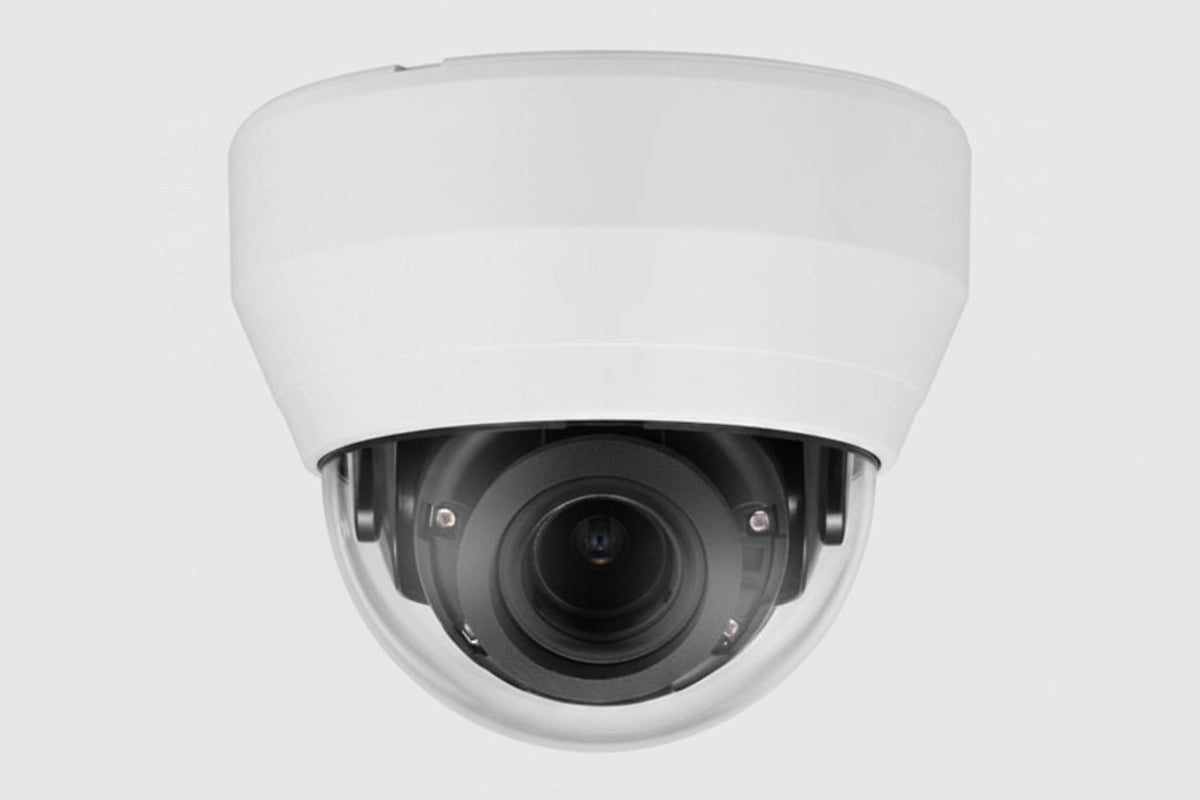

Hanwha LND-6022R L-Series 2MP IR Dome Camera, 4mm Fixed Lens, White

The Hanwha LND-6022R is a 2MP indoor IR dome network camera from the L series, finished in white. It suits installers and businesses that need a straightforward, wired Full HD camera for interior areas, with a 4mm fixed lens, built-in IR LEDs and PoE for single-cable connection. WDR and hallway view make it a practical pick for corridors and entryways.

Key features

• Records 2MP (1920 x 1080) video at 30 fps with H.264 and MJPEG codec support and multiple streaming.
• 120dB WDR helps balance bright and dark areas in the same scene.
• Day and Night (ICR) operation and built-in IR give an IR viewable length of 20m.
• Hallway view and WiseStream II support suit long, narrow spaces.
• Tampering and motion detection are built in, and a Micro SD/SDHC slot accepts cards up to 32GB.
• Powered over Ethernet, so one network cable handles data and power.

Specifications

Model: LND-6022R

Brand: Hanwha

Series: L

Product type: Dome Camera

Effective resolution: 2MP

Maximum video resolution: 1920 x 1080

Maximum frame rate: 30fps

Aspect ratio: 16:9

Image sensor: CMOS

Lens type: Fixed Focus

Focal length: 4mm

Maximum aperture: f/2

Field of view (vertical): 45.60°

Shutter speed: 1/12,000 second to 2 seconds

Night vision distance: 65.62′

Wide dynamic range: Yes (120dB)

Video format: H.264

Connectivity: Wired, Network (RJ-45)

Remote management: Yes

Mount type: Box Mount

Form factor: Dome

Indoor/Outdoor: Indoor

Color: White

NDAA compliant: Yes

Operating temperature: 14°F to 131°F

Operating humidity: 90% RH

Height: 3.40″

Diameter: 4.33″

Weight: 0.60 lb

Installation notes

This is an indoor camera, so mount it where it is protected from the weather, and aim it to cover the area of interest given its fixed 4mm field of view. Connect it to a PoE-capable switch or injector using a network cable, and check the image and IR range on site before final tightening.
