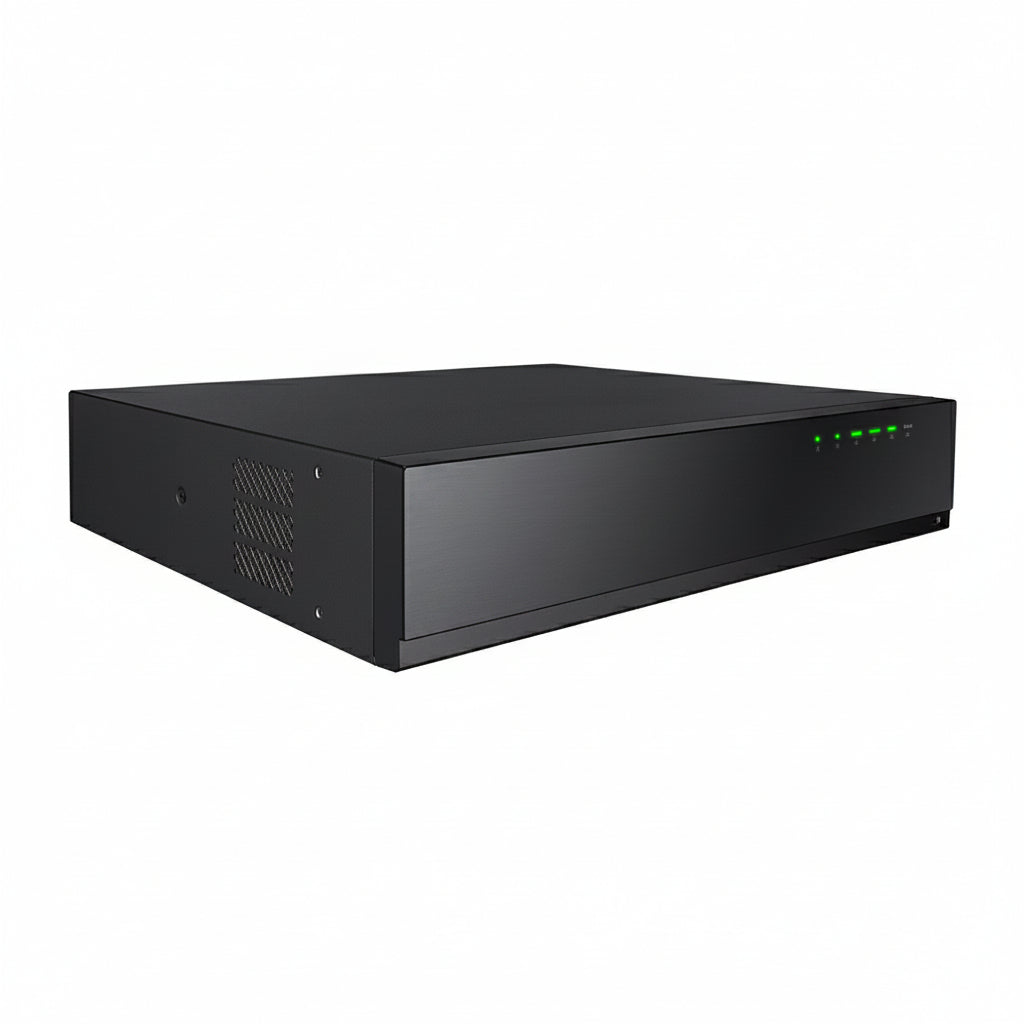

Hanwha HRX-1635-8TB 16-Channel Pentabrid DVR, 8TB HDD

16-Channel Pentabrid DVR with 8TB Storage

Professional-grade 16-channel DVR supporting five input types: AHD, HDTVI, HDCVI, CVBS, and IP. Handles up to 18 total channels with maximum 8MP resolution across analog and network inputs.

Advanced Recording Capabilities

Records analog cameras at multiple resolutions and frame rates—8MP at 15fps, 5MP at 20fps, 4MP at 30fps, and lower resolutions at 30fps per channel. Maximum recording bandwidth of 128Mbps with 32Mbps playback bandwidth ensures smooth, reliable footage capture and retrieval.

Flexible Codec Support

Supports H.265, H.264, and MJPEG codecs for efficient compression and compatibility across diverse camera systems.

Comprehensive I/O and Control

4 audio inputs with 1 output, 16 alarm inputs, and 4 relay outputs provide extensive integration options. Coaxial control simplifies camera management. Dual video outputs—HDMI and VGA—plus dedicated spot monitor output enable multi-display monitoring setups.

Scalable Storage

Accommodates up to 8 SATA hard drives (6TB each) for substantial recording capacity and extended retention periods.

Ideal for retail, offices, warehouses, and facilities requiring multi-format camera support and dependable surveillance infrastructure.
