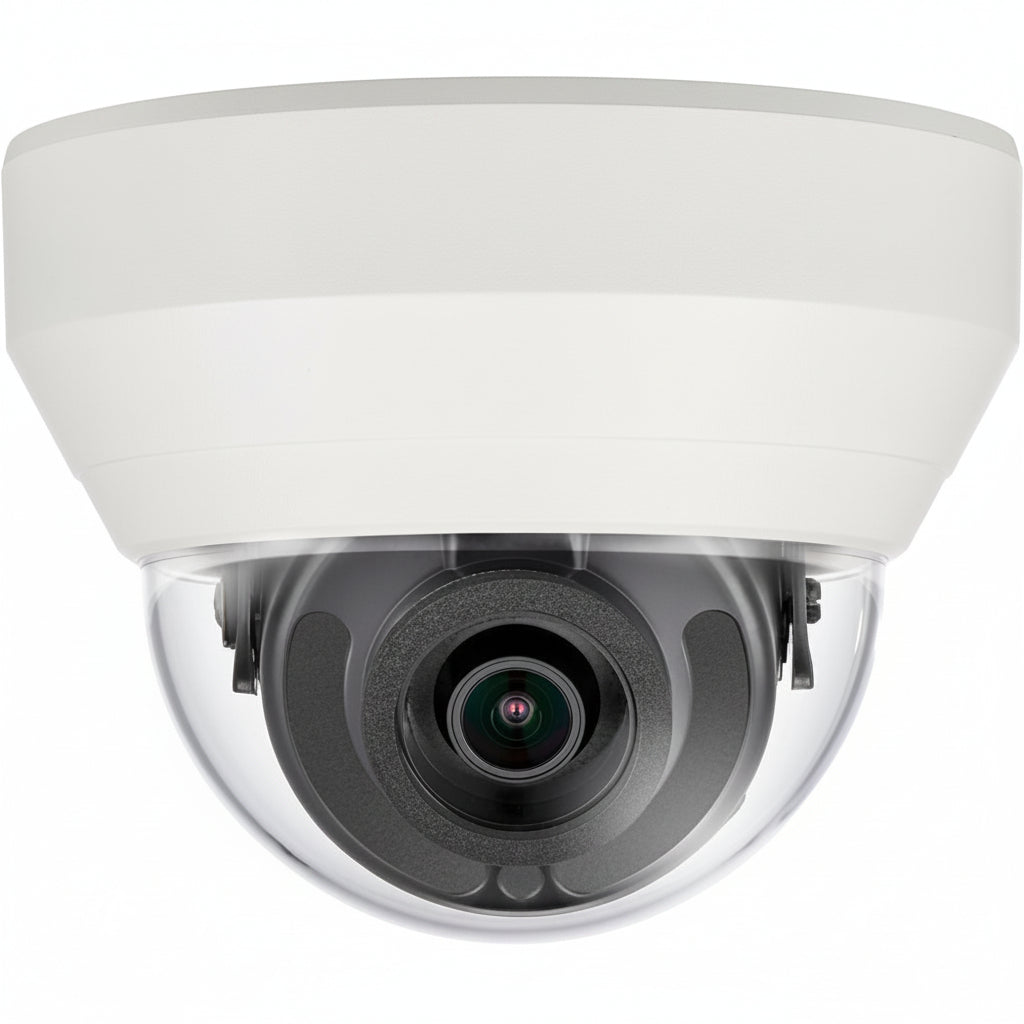

Hanwha HCD-6010 HD+ Series 2MP Analog HD Dome Camera, 2.8mm Fixed Lens, Ivory

The Hanwha HCD-6010 is a 2MP analog HD dome camera from the HD+ Series, built for indoor and wall-mounted video surveillance over coax. It records Full HD (1,920 x 1,080) video through a fixed 2.8 mm lens and works with AHD, TVI, CVI and CVBS recorders, which suits installers upgrading existing analog systems. WDR (120dB) and day/night operation help it handle mixed lighting.

Key features

• Captures Full HD (1,920 x 1,080) video in a 16:9 aspect ratio.
• Reports 0.27 lux in color at F2.0 and 0.017 lux in black and white, with Day & Night (ICR) switching.
• Offers 120dB WDR to help balance bright and dark areas in the same scene.
• Includes SSNR noise reduction and motion detection.
• Supports transmission distances up to 500m.
• Works with AHD, TVI, CVI and CVBS, and installs plug and play on 12VDC.

Specifications

Brand: Hanwha

Model: HCD-6010

Product Series: HD+

Product Type: Dome Camera

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Resolution: 1280 x 720

Maximum Frame Rate: 30fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 2.8mm

Minimum Illumination: 0.0170lux

Wide Dynamic Range: Yes

Video Formats: AHD

Recording Formats: HD

Connectivity Technology: Wired

Mount Type: Wall Mount

Form Factor: Dome

Color: White

Height: 3.40″

Diameter: 4.30″

Ingress Protection Rating: IP67

Durability: Waterproof

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Because the lens is fixed, aim the camera and choose the mounting spot with the field of view in mind before drilling. Confirm the 12VDC supply and the coax run are sound, then check the picture on the recorder, set to the matching video format, before closing up.
