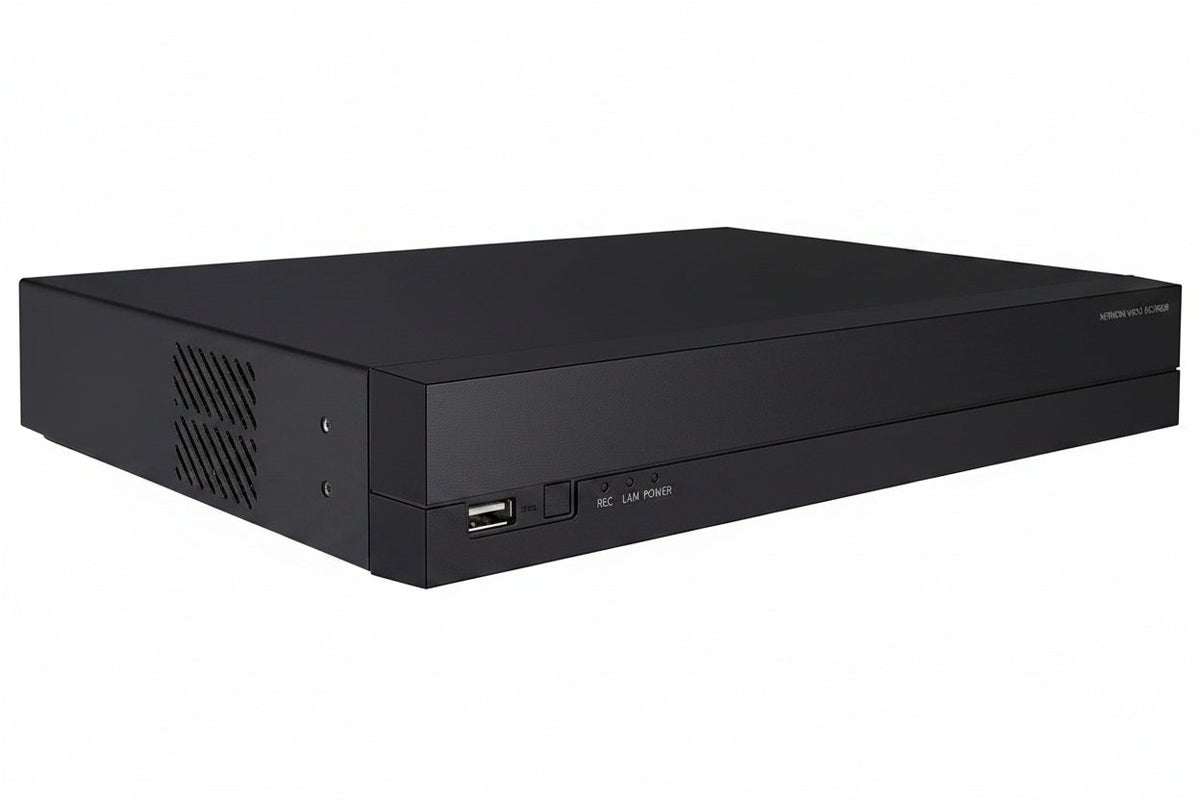

Hanwha ARN-810S-4T 8-Channel PoE NVR, 4TB

The Hanwha ARN-810S-4T is an 8-channel PoE network video recorder that records and stores footage from IP cameras, with 4TB of storage included. It suits installers and small business or home systems that want cameras powered and connected through one box. Its built-in PoE+ ports, 4K HDMI output and QR-code remote access are what stand out.

Key features

• Records up to 8 channels, with cameras up to 8MP supported.
• Supports H.265, H.264 and MJPEG codecs, with 60 Mbps of network camera recording.
• Has 8 PoE+ ports with a 65W budget, so supported cameras can plug in directly.
• Takes one hard drive, up to 6TB.
• Outputs to a local monitor over HDMI, including 4K, and offers dual track recording.
• Connects remotely by scanning a QR code, using Wisenet Viewer and Wisenet Mobile.

Specifications

Brand: Hanwha

Model: ARN-810S-4T

Product Name: 8 CH PoE NVR

Product Type: Video Surveillance Station

Product Series: A

Number of Channels: 8

Storage Capacity: 4TB

Bandwidth: 60Mbps

Maximum Resolution: 3264 x 2448

Maximum Frame Rate: 120fps

Recording Formats: 4K

Video Formats: H.264

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Remote Management: Yes

Power Consumption: 84W

Height: 1.90″

Width: 11.80″

Depth: 8.20″

Country of Origin: VN

Installation notes

Place the recorder in a ventilated spot with room around it, and add up the camera power draw before connecting devices so the PoE+ budget is not exceeded. Connect the cameras and monitor, then set up remote access by scanning the QR code in the Wisenet apps.
