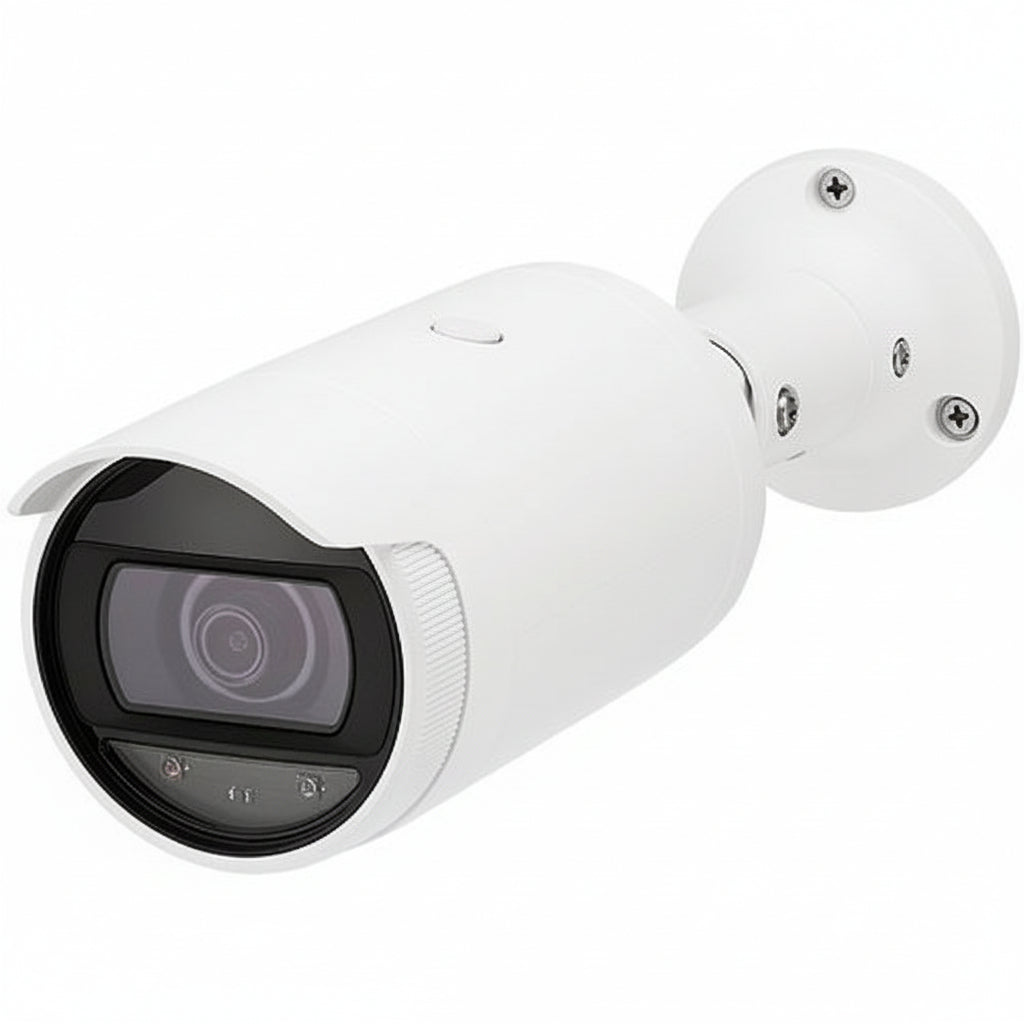

Hanwha ANO-L6022R A-Series 2MP Bullet Camera, 4mm Lens, White

The Hanwha ANO-L6022R is a 2MP outdoor IR bullet network camera from the A-Series, with a fixed 4mm lens and a white housing. It suits installers and businesses that need dependable Full HD coverage of hallways, entrances and similar areas, day or night. Standouts include 120 dB WDR, 30m of IR range, IP66 and IK10 protection, and WiseStream II support.

Key features

• Records 1920 x 1080 video at 30fps at all resolutions, using H.265 or H.264, with MJPEG also supported.
• The 4mm lens gives an 84.3° horizontal field of view, and Hallway view is supported.
• Day and Night (ICR) operation and 120 dB WDR help in difficult lighting, with IR reaching 30m.
• Built-in analytics cover defocus, directional and motion detection, enter/exit and tampering.
• A Micro SD/SDHC slot (up to 32GB) allows local storage, and the camera runs on PoE.
• IP66 and IK10 ratings suit outdoor, impact-prone locations.

Specifications

Model: ANO-L6022R

Brand: Hanwha

Series: A

Product type: Bullet Camera

Effective resolution: 2MP

Maximum video resolution: 1920 x 1080

Aspect ratio: 16:9

Maximum frame rate: 30fps

Image sensor: CMOS

Lens type: Fixed focus

Focal length: 4mm

Maximum aperture: f/2

Horizontal field of view: 84.3°

Vertical field of view: 45.60°

Shutter speed: 1/12,000 second to 2 seconds

Night vision: Infrared (IR), 98.43′ (30m)

Wide dynamic range: Yes (120 dB)

Video formats: H.265, H.264, MJPEG

Storage: Micro SD/SDHC memory card, max. 32GB

Network: RJ-45, wired, PoE

Remote management: Yes

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Mount type: Backbox mount

Operating temperature: -22°F to 131°F

Operating humidity: 95% RH

Diameter: 3.07″

Weight: 0.86 lb

Color: White

Country of origin: VN

Installation notes

Because the camera mounts on a backbox and runs on PoE, plan the cable run to the backbox and confirm the switch port can supply power before you mount. Aim the camera along the area to be covered and check the view and IR coverage at night during commissioning.
