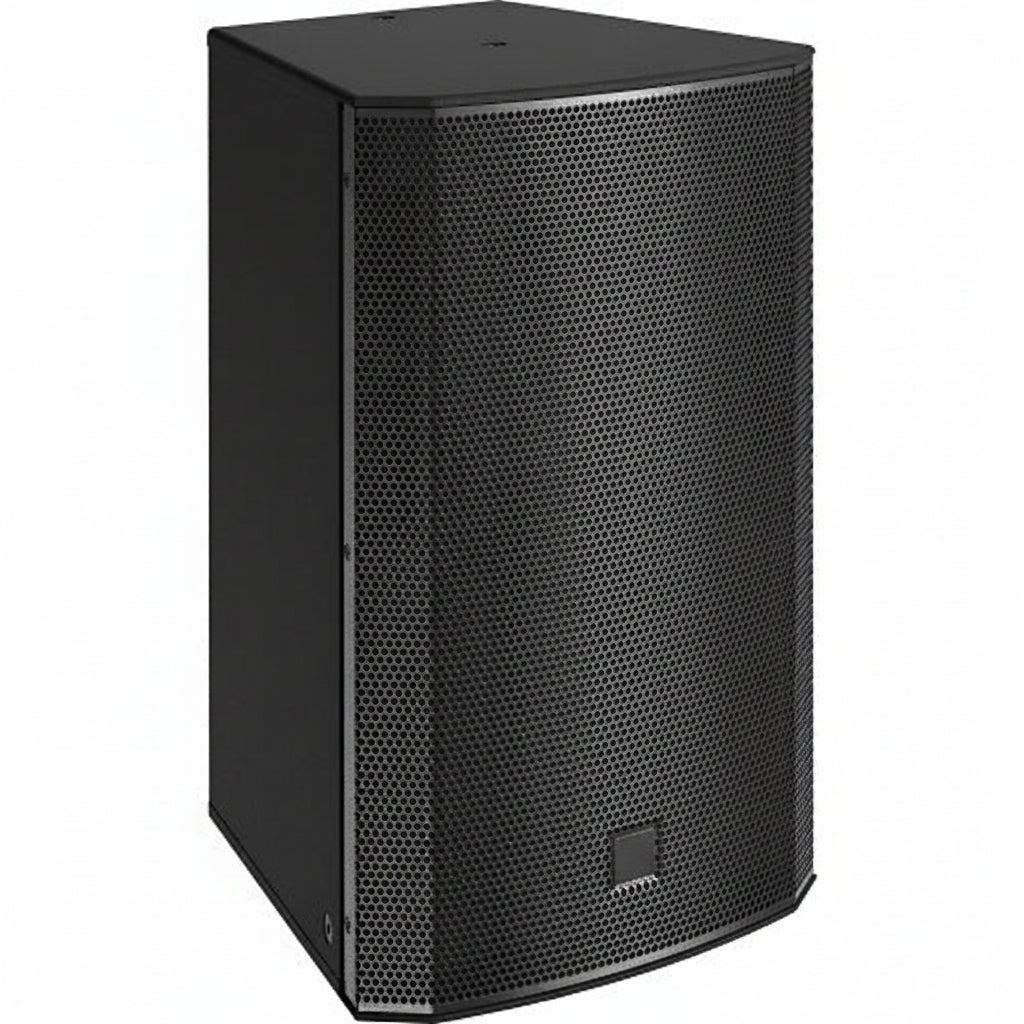

Electro-Voice EVC-1122-95B 12" 2-Way Indoor Loudspeaker, with 90˚ 55˚ Constant Directivity, Rotatable Waveguide, Black

The Electro-Voice EVC-1122-95B is a 12″ 2-way indoor loudspeaker with a 90° x 55° constant directivity, rotatable waveguide, finished in black. It suits installers and businesses that need a wall-mounted passive speaker with high output and controlled coverage. The 300 W continuous rating, 95 dB sensitivity and 126 dB maximum SPL are what stand out.

Key features

• The rotatable waveguide gives uniform pattern control with 90° x 55° directivity.
• It is rated for 300 W continuous and 1200 W peak power.
• The high-output woofer is designed for low distortion.
• The 15-mm plywood enclosure carries an EVCoat finish and a stainless steel grille.
• Multiple M10 rigging points are provided for mounting.
• An optional high-quality transformer with ASC is available.

Specifications

Brand: Electro-Voice

Model: EVC-1122-95B

Series: EVC

Type: Indoor loudspeaker

Color: Black

Size: 12″

Crossover type: 2-way

Coverage: 90° x 55°

RMS power: 300 W

Peak power: 1200 W

Sensitivity: 95 dB

Maximum SPL: 126 dB

Impedance: 8 ohm

Frequency response: 70 Hz to 22 kHz

High-frequency material: Titanium dome

Mount type: Wall mount

Indoor/Outdoor: Indoor

Height: 24.30″

Width: 15.60″

Depth: 15.79″

Country of origin: Mexico

Installation notes

Use the M10 rigging points with hardware rated for the cabinet's weight, and confirm the mounting surface can carry the load before hanging. Rotate the waveguide to match the room's coverage needs before final mounting, and check the amplifier's power and impedance against the speaker's ratings.
