Episode ECS-200-IC-8 200 Commercial Series 25/70V In-Ceiling Speaker with 8" Full-Range Driver

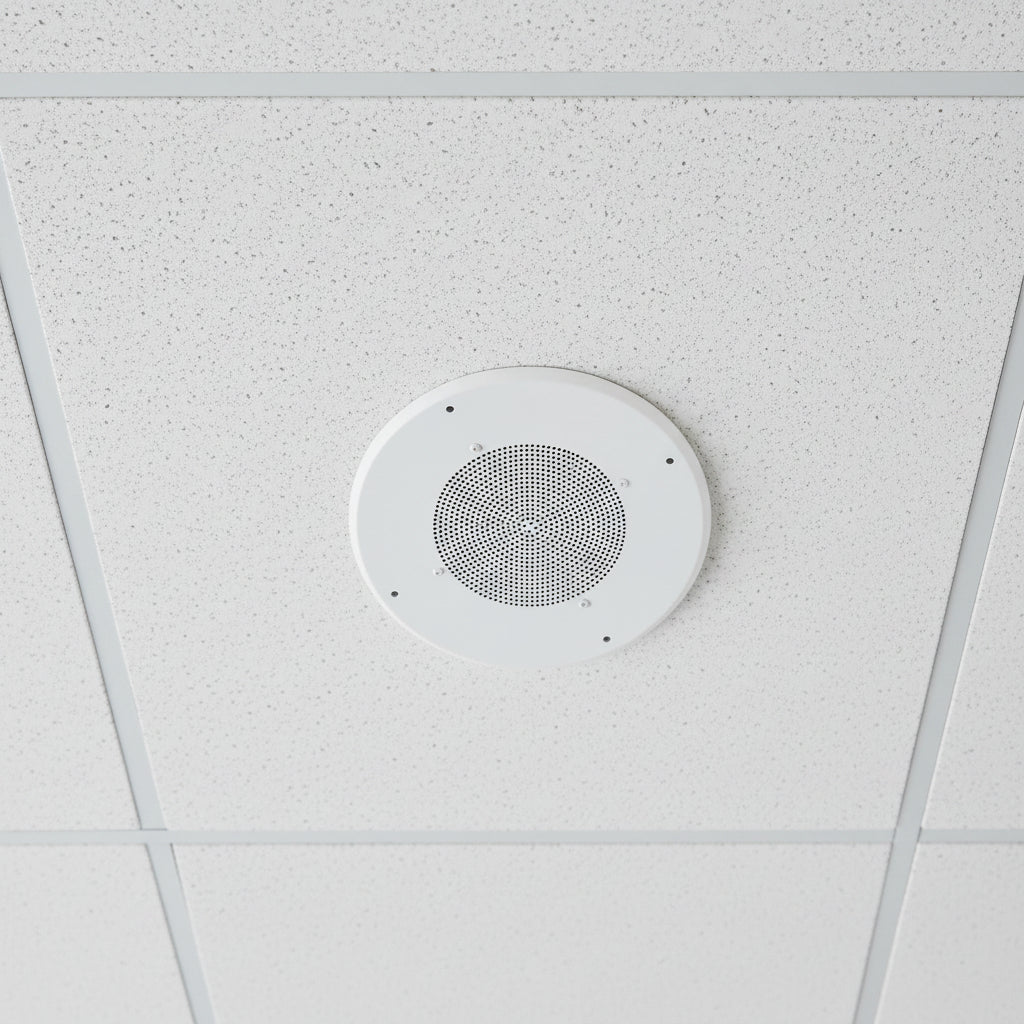

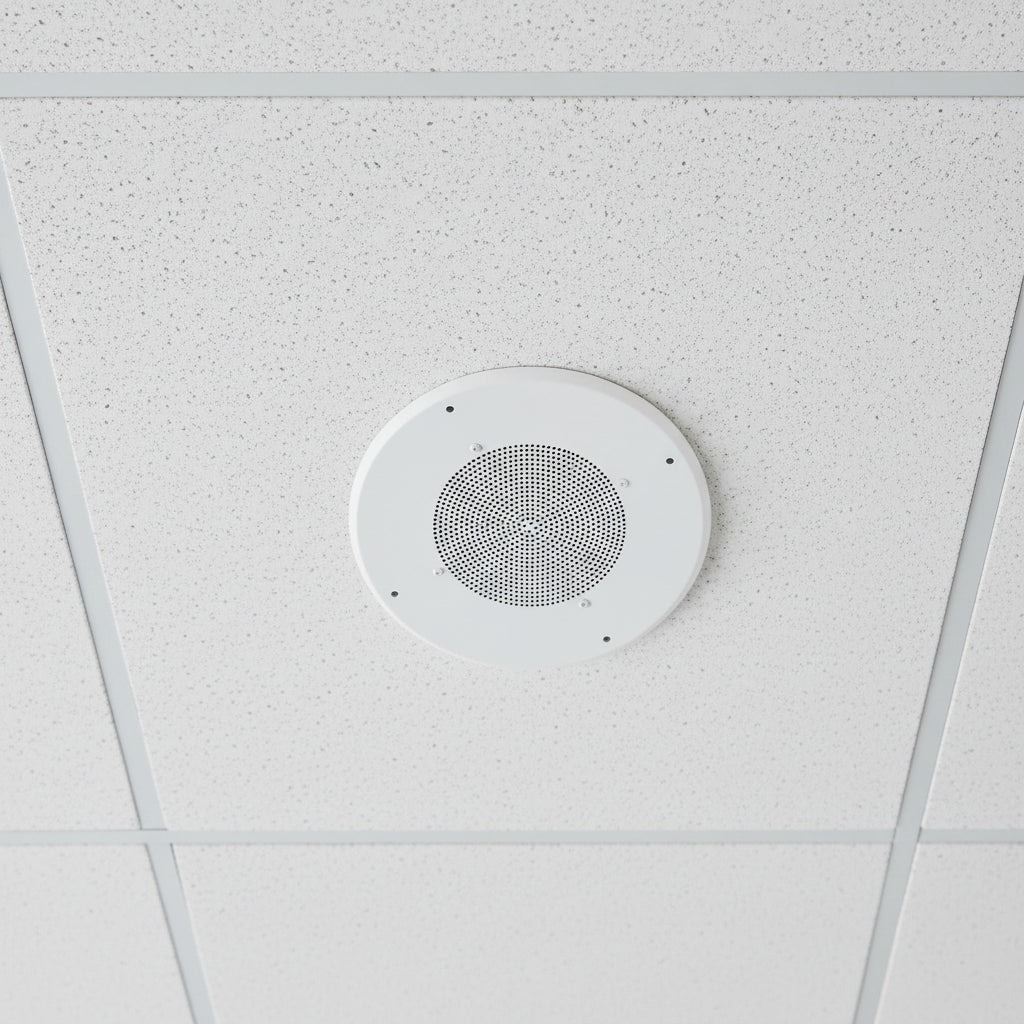

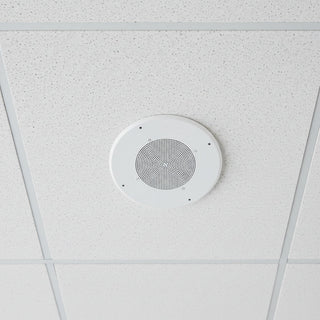

The Episode ECS-200-IC-8 is a white in-ceiling speaker from the Commercial Series, built around an 8″ full-range driver. It suits background music and paging in commercial spaces, and its 25/70V compatibility lets installers run it on a distributed line. The aluminum baffle and the included ribbed tile bridge are the standout practical details.

Key features

• The 8″ full-range driver covers music and voice from a single speaker.
• It works on 25/70V lines, so it fits distributed-audio layouts.
• Tap settings of 0.5W, 1W, 2W and 4W let you match output to each zone.
• The aluminum baffle is made to hold up over time.
• A tile bridge is included, and its ribbed design adds strength for mounting in ceiling tile.

Specifications

Brand: Episode

Model: ECS-200-IC-8

Product Series: Commercial

Product Type: In-ceiling

Speaker Size: 8″

Diameter: 12.6″

Sensitivity: 95dB

Maximum Frequency Response: 17kHz

Compatibility: Control4

Color: White

Installation notes

Choose the tap setting for each speaker before closing up the ceiling, and keep the taps consistent across a zone so levels stay even on the line. In drop-ceiling installs, seat the tile bridge firmly across the tile so it carries the speaker's weight.
