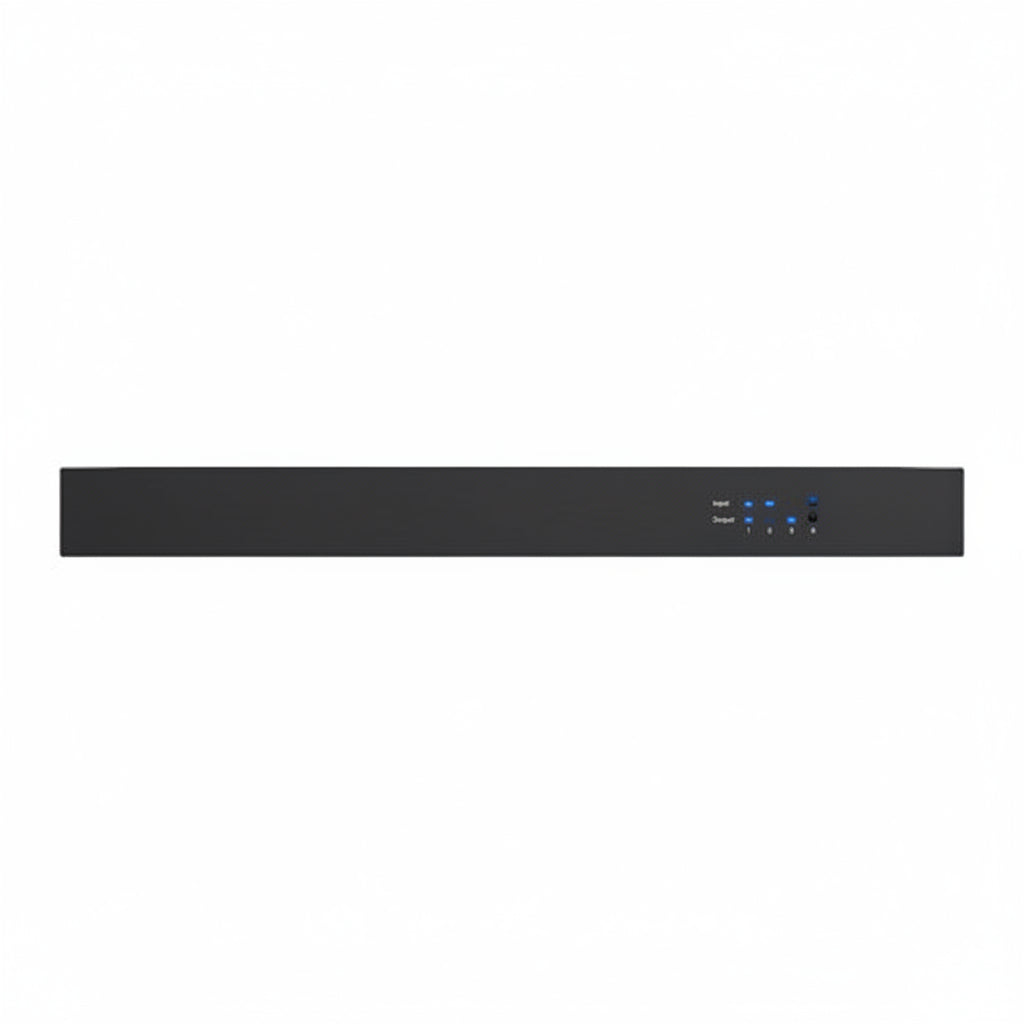

Episode EA-COM-AMP-4D-350 Commercial Series 4-Channel 350W Digital Amplifier with 70V/8 Ohms Support

The Episode EA-COM-AMP-4D-350 is a 4-channel digital amplifier from the Commercial Series, built for corporate building audio and part of the Episode Business Music Solution line. It delivers 80-350W per channel and supports 70V, 100V, 8-ohm and 4-ohm outputs, so it can drive distributed or low-impedance speaker layouts. Built-in DSP, IP control and OvrC compatibility stand out in a 1U chassis.

Key features

• Output is selectable between 70V, 100V, 8-ohm and 4-ohm.
• Each channel provides 80-350W, with power shared intelligently between channel pairs.
• Built-in EQ and compression DSP includes matrixing.
• A 2-pin contact closure can be configured for input/output routing and mute functions.
• IP control supports automation, monitoring and installation configuration, and OvrC compatibility allows remote monitoring, configuration and troubleshooting.
• The 1U rack size saves space and allows units to be stacked.

Specifications

Brand: Episode

Model: EA-COM-AMP-4D-350

Product Type: Amplifier

Product Line: EBMS

Product Series: Episode Business Music Solution

Application/Usage: Corporate Building

Maximum Frequency Response: 20kHz

Certifications & Standards: CE

Additional Information: EC 61000-4-2 Level 2 Contact

Operating Temperature: 14-122°F

Storage Temperature: -22-158°F

Operating Humidity: 20-90% (Non-condensing)

Dimensions: 19″ x 1.75″ x 14″

Weight: 9.00lb

Installation notes

Mount the amplifier in a rack with enough clearance for airflow, and keep it within the listed operating temperature and humidity range. Match the output mode to the speaker line or load before powering up, and confirm the total connected load stays within each channel's output capability.
