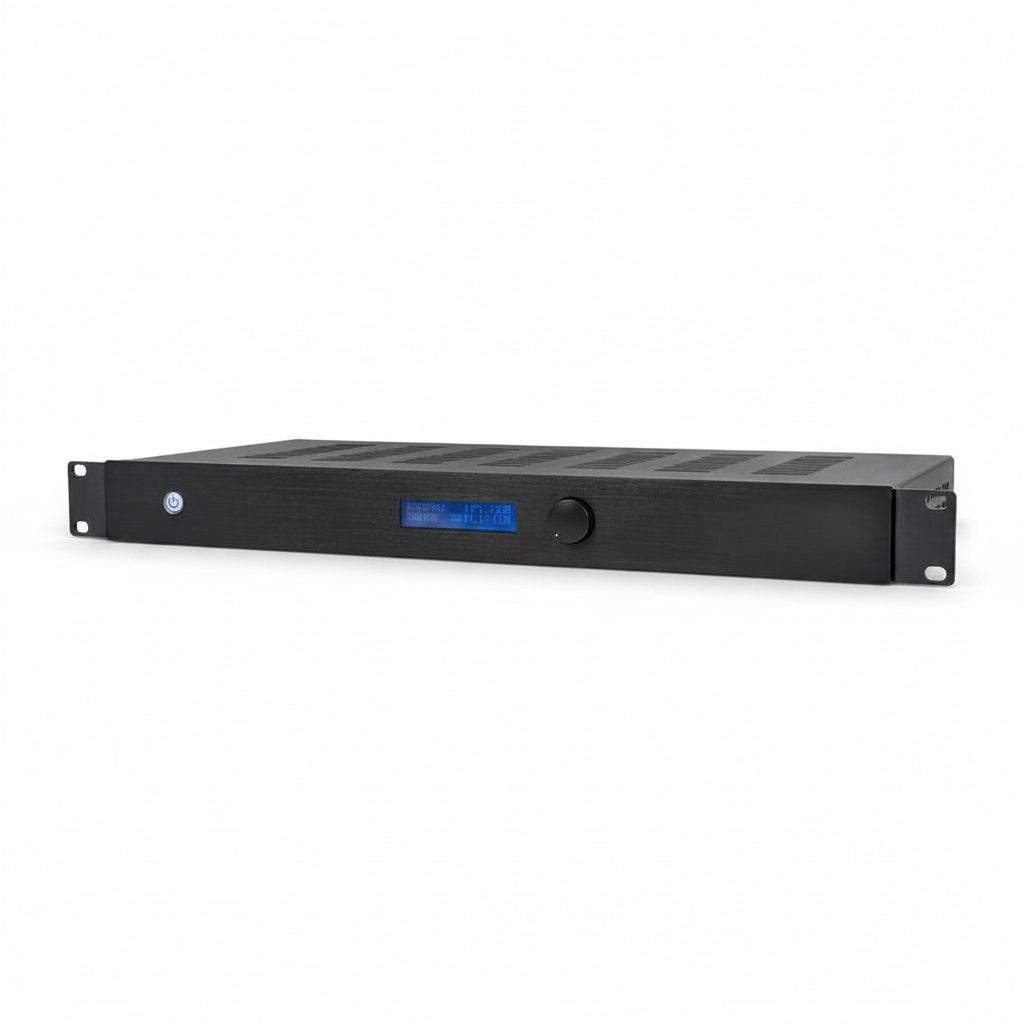

Episode EA-AMP-SUB-1D-500R 500W Digital Subwoofer Amplifier with Front Panel Control

The Episode EA-AMP-SUB-1D-500R is a single-channel digital subwoofer amplifier rated at 500W RMS. It drives subwoofers in whole-home and outdoor audio systems, and suits installers who want to tune bass on the unit itself. The front panel display and the custom EQ settings for in-wall, hardscape and burial subs are what stand out.

Key features

• A front panel display makes setup easier and allows quick adjustments.
• Custom EQ settings are available for dual 8″ in-wall, 10″ hardscape or 12″ burial subwoofers.
• Power mode selection lets you set how the amplifier operates.
• A rackmount installation option supports equipment rack builds.
• RCA line level inputs and pass-through outputs make it easy to connect to the source and to other gear.

Specifications

Brand: Episode

Model: EA-AMP-SUB-1D-500R

Product Type: Subwoofer Amplifier

Audio Channels: 1

RMS Output Power: 500W

Impedance: 15Ohm

Minimum Frequency Response: 20Hz

Maximum Frequency Response: 300Hz

Environmental Certification: UL/EN60066

Width: 16.90″

Depth: 8.10″

Weight: 8.50lb

Installation notes

If rack mounting, leave room around the amplifier for airflow and use the rackmount option to secure it. Confirm the subwoofer type and EQ setting on the front panel display before final level matching, and use the RCA pass-through outputs to feed any additional gear.
