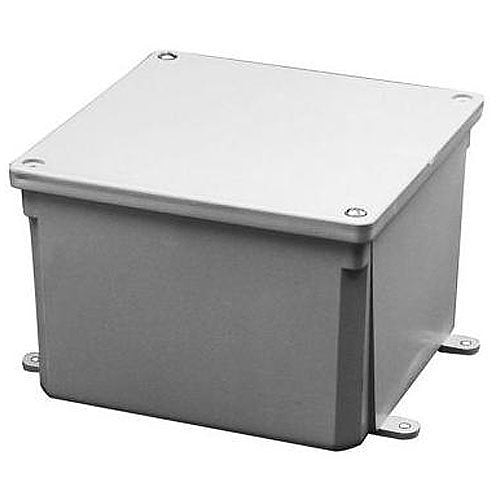

E987R Carlon Polycarbonate Weatherproof Molded Junction Box, Gray

The Carlon E987R is a gray polycarbonate weatherproof junction box measuring 6″ x 6″ x 4″, sold here in a pack of 10. It gives installers a sealed, non-metallic enclosure for outdoor wiring splices and connections, including direct burial runs. It stands out as the first non-metallic junction box UL Listed with a NEMA 6P rating per Section 314, exception of the National Electrical Code.

Key features

• Molded polycarbonate construction in gray.
• Measures 6″ long, 6″ wide and 4″ deep.
• The first non-metallic junction box UL Listed with a NEMA 6P rating per Section 314, exception of the National Electrical Code.
• Offers the corrosion resistance and physical properties needed for direct burial applications.
• Rated for outdoor use.

Specifications

Brand: Carlon

Model: E987R

Product Line: Carlon

Material: Polycarbonate (plastic)

Color: Gray

Length: 6.00″

Width: 6.00″

Depth: 4.00″

Packaged Quantity: 10

Indoor/Outdoor: Outdoor

Application/Usage: Direct Burial

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: MX

Installation notes

Size the box for the number and gauge of conductors and splices it will hold, and keep wiring neatly arranged so the cover seats properly. Use fittings and sealing methods suited to a weatherproof enclosure, and follow local electrical code for any buried installation.
