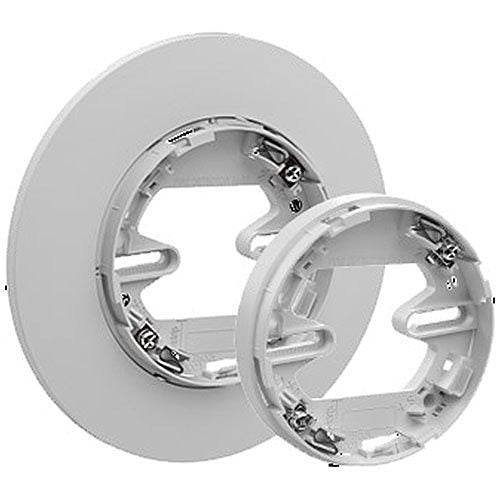

4" Surface Mount Detector Base Low Profile White PAD300-4DB, Fire Detection Accessory

The Potter PAD300-4DB is a low-profile surface-mount detector base designed for use with Potter's addressable fire detection systems. This 4" base installs on single gang, double gang, octagon, or 4" square electrical boxes, making it ideal for new installations and retrofit applications in commercial and residential fire alarm systems.

The base features screw clamp terminals that accept wire sizes from 22 to 12 AWG, with terminals marked by polarity to simplify installation. Duplicate terminals support in-and-out SLC wiring configurations, allowing flexible circuit design. A built-in locking tab deters unauthorized detector removal, providing security in sensitive environments. The white finish integrates cleanly with standard wall boxes and electrical enclosures.

Operating reliably between 32°F and 150°F, this detector base is built to perform in diverse climate conditions. The product includes a 5-year manufacturer's warranty and measures 0.80" in height for a truly low-profile installation that minimizes visual impact.

• Accepts 22 to 12 AWG wire with screw clamp terminals marked for polarity
• Mounts on single gang, double gang, octagon, or 4" square electrical boxes
• Locking tab prevents unauthorized detector removal for added security
• Duplicate terminals support flexible in-and-out SLC wiring configurations
• Low-profile 0.80" height design for discreet installation
• Operates reliably from 32°F to 150°F in diverse environments
• Includes 5-year manufacturer warranty
