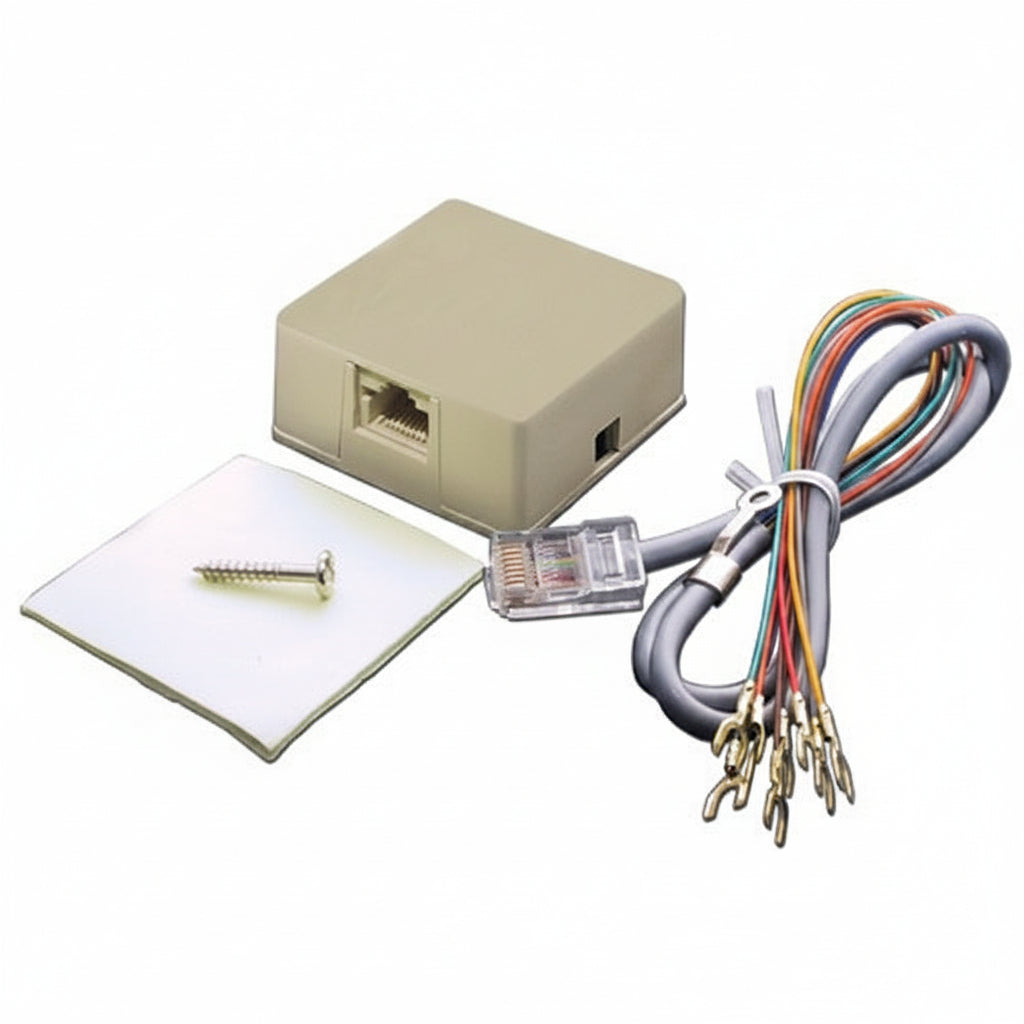

ELK ELK-RJSET Telco Jack and Cord

The ELK ELK-RJSET Telecom Kit pairs a USOC RJ31X 8-pin modular surface mount jack with a 2 ft. 8-wire modular cord. It gives you a way to connect alarm system communicators, line fault devices, or other equipment to the incoming telephone line. The jack's built-in pass-through shorting bars keep the line connected when the plug is removed, and the kit suits residential installs.

Key features

• The jack is a USOC RJ31X 8-pin modular surface mount type.
• Built-in pass-through shorting bars maintain the line connection when the plug is removed.
• A self-adhesive foam mounting pad is included for placing the jack.
• The 8-wire modular cord has a plug on one end and spade terminals on the other.
• Connector pins are plated with 50 microns of gold.

Specifications

Brand: ELK

Model: ELK-RJSET

Product Type: Telecom Kit

Jack: USOC RJ31X 8-pin modular surface mount

Cord: 2 ft. (24″) 8-wire modular cord, plug on one end and spade terminals on the other

Compatibility: Alarm System Communicators

Installation Type: Residential

Package Contents: USOC RJ31X 8-pin modular surface mount jack, 2 ft. 8-wire modular cord, self-adhesive foam mounting pad

Package Type: Bag

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Installation notes

Mount the jack on a clean, dry surface close to the incoming telephone line and the equipment being connected, so the cord run stays short and tidy. Confirm each spade terminal is seated firmly on its connection point, then test the line with the plug in and removed to verify the shorting bars pass the line through as expected.
