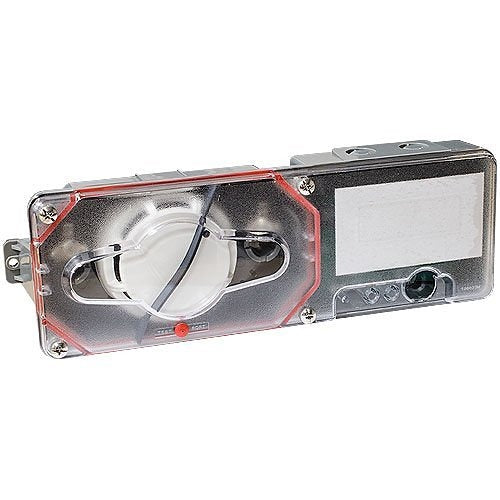

Analog Addressable Duct Smoke Detector, Photoelectric HVAC Air Sampling PAD200-DUCT

The PAD200-DUCT is an analog addressable duct smoke detector engineered to detect smoke in building HVAC ducting systems. It uses photoelectric sensing technology with dual air sampling tubes that protrude into the duct, meeting all NFPA regulations and local fire code requirements. The unit operates at listed air velocities from 100 to 4,000 ft/minute and includes a 7-inch exhaust tube; additional sampling tubes (2.5 ft., 5 ft., and 10 ft.) are available for custom duct sizing.

This detector is compatible with Potter addressable IPA and AFC/ARC series fire alarm control panels and features SLC Class A, Class X, and Class B wiring capability. The durable plastic enclosure with clear cover allows installation without removal of the detector head, using a provided template and sheet metal screws. No screens or filters are required in the housing, simplifying maintenance.

Ideal for commercial, industrial, residential, and HVAC applications where early smoke detection in ductwork is critical. The unit is UL listed, FM approved, and NFPA compliant, with a 5-year limited warranty. Powered by 24V DC, it includes status indicators for system monitoring.

• Photoelectric smoke sensing with dual air sampling tubes for reliable HVAC duct detection
• Analog addressable technology—compatible with Potter IPA and AFC/ARC series fire alarm panels
• Operates at 100 to 4,000 ft/minute air velocity; no screens or filters required
• Installation without removing head; includes template, exhaust tube, and mounting hardware
• UL listed, FM approved, NFPA compliant; 5-year limited warranty
• 24V DC powered with status indicator lights for system monitoring
