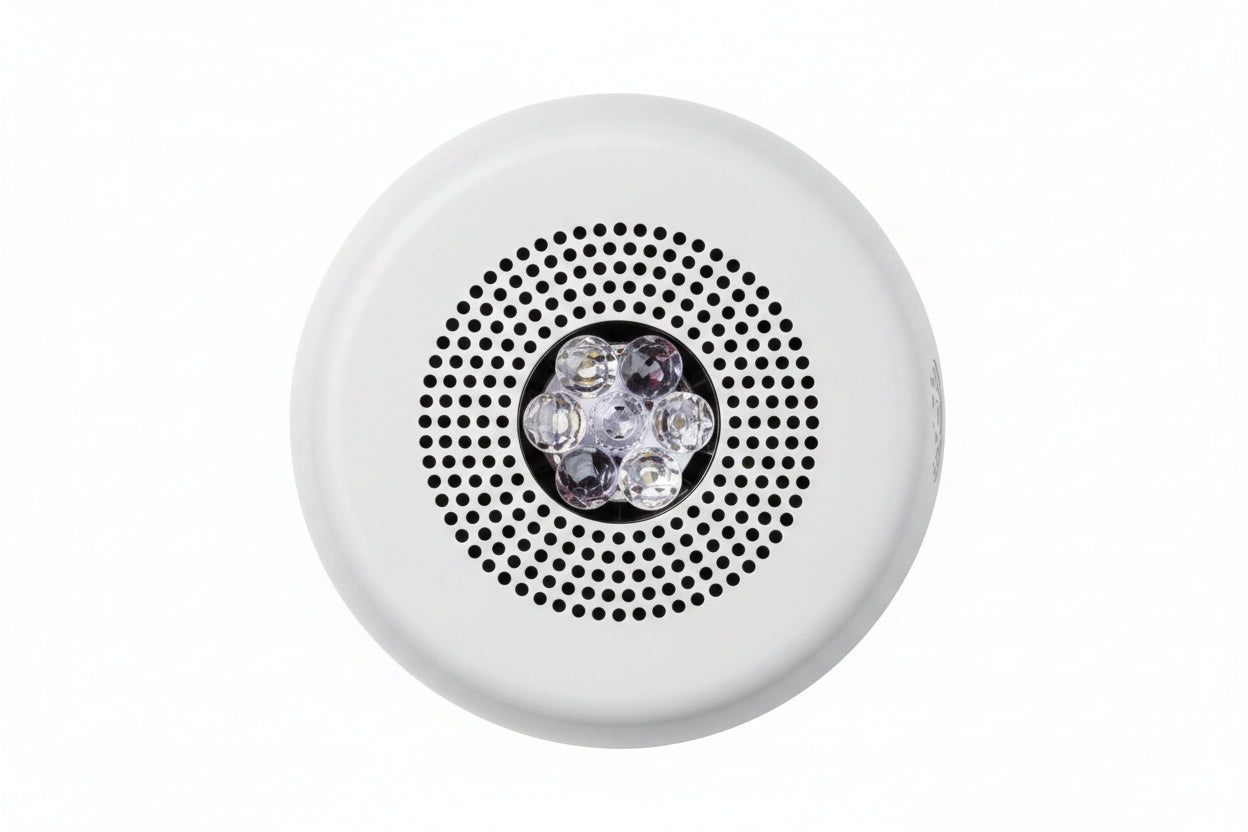

Eaton ELCHSWC Wheelock Eluxa Chime Strobe, FIRE Lettering, Ceiling Mount, 24V, White

Wheelock Eluxa electronic chime strobe combining advanced LED technology with field-selectable operation modes. Features 1 Hz, 2 Hz, Coded, and Temporal 3 (T3) modes with six candela settings (15, 30, 75, 110, 150, 177 cd) for ceiling-mount applications. Low-profile design blends seamlessly with interior décor while delivering industry-leading energy efficiency and lowest current draw across all candela ranges.

2-wire or 4-wire circuit capability allows independent control of strobe and audible functions via sync protocol. Adjustable volume with anechoic sound levels up to 78 dB. Pre-wire and pre-test accessible via hinged mounting plate for simplified installation. 24V operation suitable for hospital and institutional environments.

UL 1638 and 464 listed, CAN/ULC-S525 and S526 certified. CSFM and Factory Mutual approved. RoHS compliant with no mercury or hazardous substances. Backward compatible with existing Wheelock RSS strobe models and all Fire Alarm Control Panels determined compatible with Exceder LED3 and Wheelock RSS products.

Includes mounting plate.
