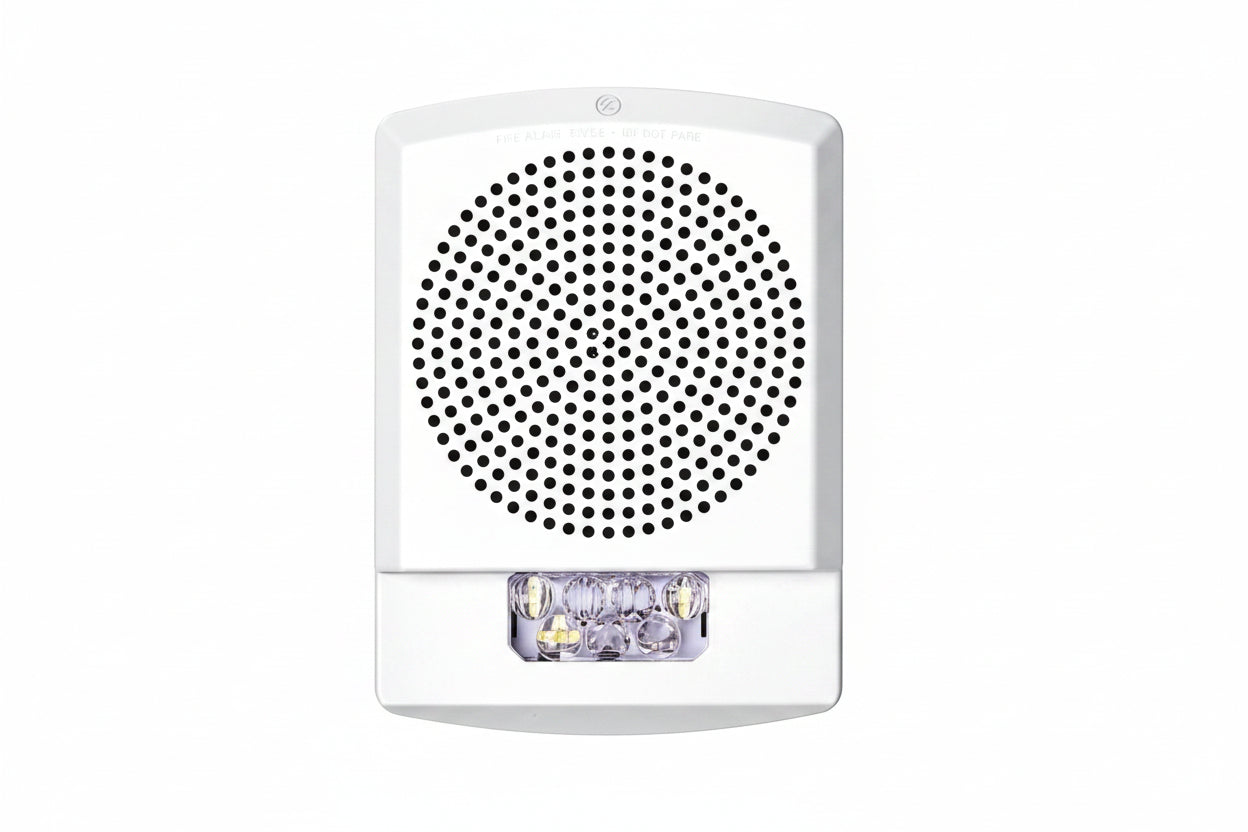

Eaton ELCHSW Wheelock Eluxa Chime Strobe, FIRE Lettering, Wall Mount, 24V, White

Wheelock Eluxa electronic chime strobe for fire alarm systems featuring field-selectable 1 Hz, 2 Hz, Coded, and Temporal 3 (T3) modes. Advanced LED technology delivers industry-leading efficiency with lowest current draw across six candela settings (15, 30, 75, 110, 135, 185 cd), reducing power consumption and system costs. Low-profile design blends seamlessly with interior décor, ideal for hospitals and institutional applications.

2-wire or 4-wire circuit options enable independent control of strobe and audible functions. Adjustable volume with anechoic sound levels up to 78 dB. Pre-wire and pre-test capability via hinged mounting plate for simplified installation. 24V operation, wall-mount configuration.

UL 1638 and 464 listed, CAN/ULC-S525 and S526 certified. CSFM and Factory Mutual approved. RoHS compliant, mercury-free. Compatible with all Fire Alarm Control Panels previously compatible with Exceder LED3 and Wheelock RSS products. Backward compatible with existing Wheelock notification devices.

Includes mounting plate.
